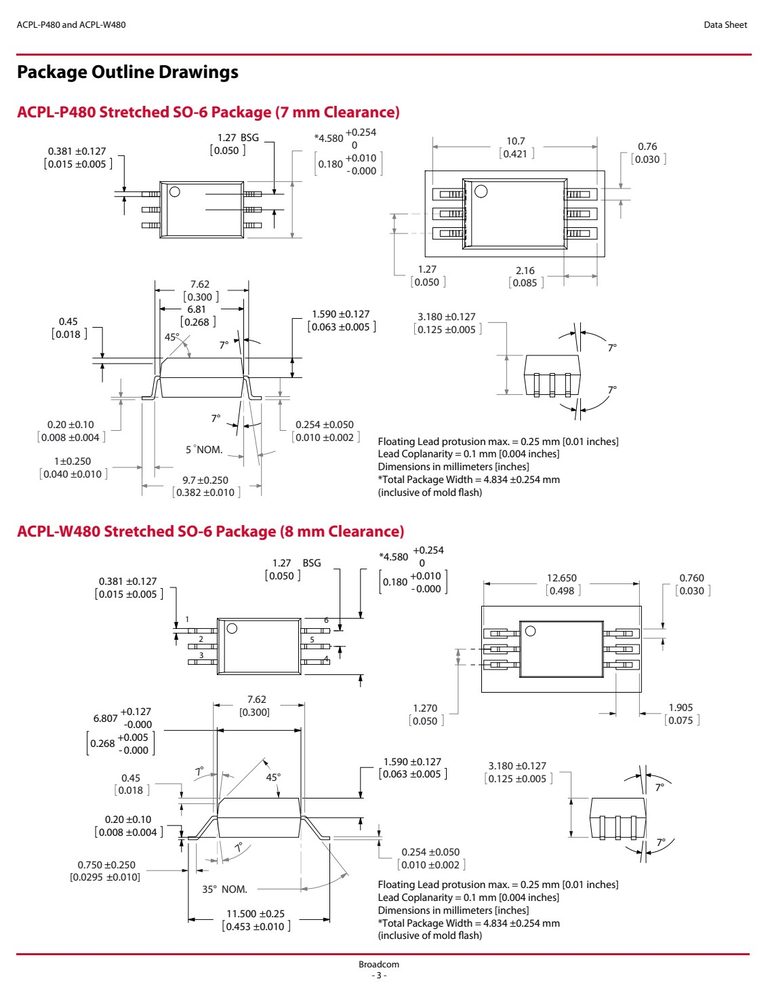

图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 4
- 电源电压 VCC
- 25
- 工作温度 TA
- +100

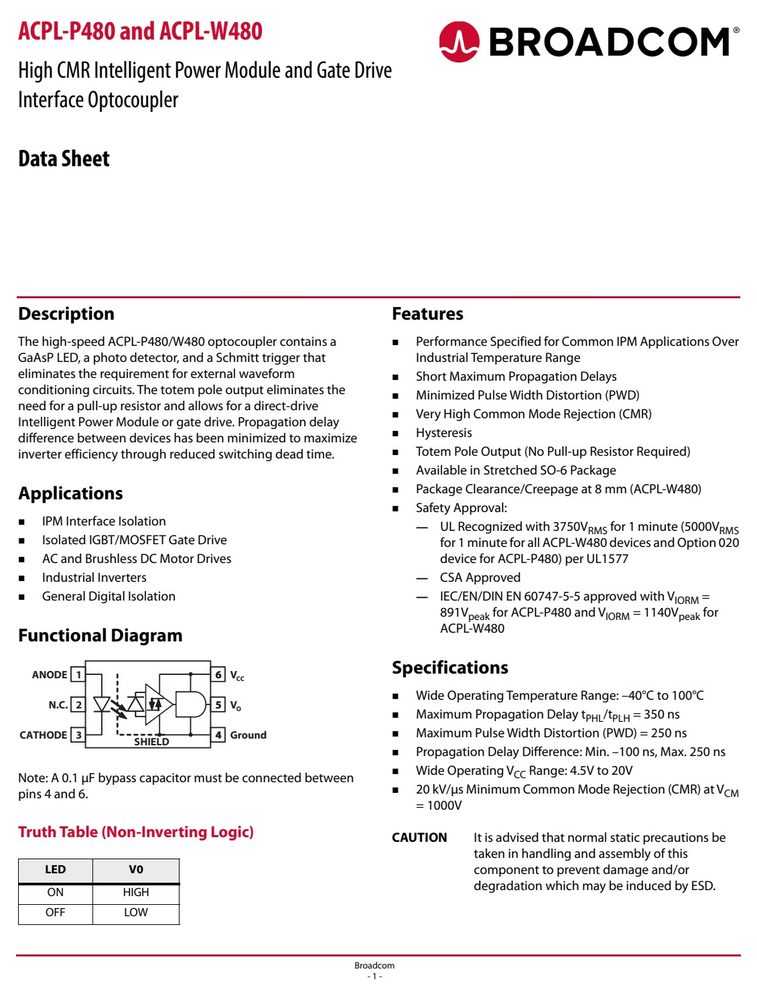

产品特点 Features
- The high-speed ACPL-P480/W480 optocoupler contains a Performance Specified for Common IPM Applications Over
- Minimized Pulse Width Distortion (PWD) need for a pull-up resistor and allows for a direct-drive
- Very High Common Mode Rejection (CMR)
- Available in Stretched SO-6 Package
- ACPL-P480 and ACPL-W480 Data Sheet
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 |
|---|---|---|---|---|
| Storage Temperature | T | –55 | +125 | °C |
| Operating Temperature | T | –40 | +100 | °C |
| Average Input Current | I | 10 | mA | |
| (<1 μs pulse width, 300 pps) | 1.0 | A | ||
| (<200 μs pulse width, <1% duty cycle) | 40 | mA | ||
| Average Output Current | I | 25 | mA | |
| Supply Voltage | V | 0 | 25 | V |
| Output Voltage | V | –0.5 | +25 | V |
| Total Package Power Dissipationa | P T | 210 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| Safety-limiting | 值 | – | maximum | 值2 | allowed | in | the | event | of | a | failure |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input to Output | Test | Voltage, | Method ba | V PR 1670 2137 V peak | |||||||
| V x 1.875 | = V , | 100% | Production | Test | with t | = | 1 sec, | ||||
| Input to Output | Test | Voltage, | Method aa | V PR 1426 1824 V peak | |||||||
| V x 1.6=V | , Type | and | Sample | Test, t | = 10 | sec, | |||||
| Highest | Allowable | Overvoltage | V 6000 8000 V | ||||||||
| (Transient | Overvoltage | t | = 60 | sec) | |||||||
| Case | Temperature | T 175 °C | |||||||||
| Input Current | I | 230 mA | |||||||||
| Output Power | P | 600 mW | |||||||||
| S | IO | S | |||||||||
| Minimum | External Air | Gap | L(101) | 7.0 | 8.0 mm Measured from input terminals to output | ||||||
| (External | Clearance) | terminals, shortest distance through air. | |||||||||
| Minimum | External | Tracking | L(102) | 8.0 | 8.0 mm Measured from input terminals to output | ||||||
| (External | Creepage) | terminals, shortest distance path along body. | |||||||||
| (Internal | Clearance) | conductor, usually the straight line distance | |||||||||
| Minimum | Internal | Tracking | N/A | mm Measured from input terminals to output | |||||||
| (Internal | Creepage) | terminals, along internal cavity. | |||||||||
| Tracking | Resistance | CTI | >175 | V DIN IEC 112/VDE 0303 Part 1. | |||||||
| Isolation Group | IIIa | Material Group (DIN VDE 0110, 1/89, Table 1). - 4 - |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 测试条件 | 图号 | 备注 |
|---|---|---|---|---|---|---|---|---|
| A | CC | F(ON) | F(OFF) | |||||
| unless otherwise specified. | All typicals | at T = | 25°C. | |||||
| Logic Low Output Voltage | V | 0.5 | V | I = 6.4 mA | 1, 3, 9, 10 | |||
| Logic High Output Voltage | V | 2.4 | V – 1.1 | V | I = –2.6 mA | 2, 3, 7, 9, | ||
| OH | CC | OH | ||||||
| ACPL-P480 | 2.7 | I = –0.4 mA | ||||||
| ACPL-W480 | 2.7 | I = –1.6 mA | ||||||
| ACPL-P480 and ACPL-W480 | Data Sheet | |||||||
| Threshold Input Current | 2.2 | 5.5 | mA | |||||
| Output Leakage Current | I OHH | 100 | μA | V = 5V, I = 10 mA CC F | ||||
| O CC | 500 | μA | V = 20V, I = 10 mA | |||||
| Logic Low Supply Current | I CCL | 1.9 | 3.0 | mA | V = 5.5V, V = 0V, I = Open CC F O | |||
| 2.0 | 3.0 | mA | V = 20V, V = 0V, I = Open | |||||
| Logic High Supply Current | I CCH | 1.5 | 2.5 | mA V | = 5.5V, I = 10 mA, I = CC F O | Open | ||
| 1.6 | 2.5 | mA V | = 20V, I = 10 mA, I = | Open | ||||
| Logic Low Short Circuit | I OSL | 25 | mA | V = V = 5.5V, V = 0V O CC F | a | |||
| 50 | mA | V = V = 20V, V = 0V | ||||||
| Logic High Short Circuit | I OSH | –25 | mA V | = 5.5V, I = 10 mA, I = CC F O | Open | a | ||
| –50 | mA V | = 20V, I = 10 mA, I = | Open | |||||
| Input Forward Voltage | V F | 1.5 | 1.7 | V | T = 25°C, I = 6 mA A F | 4 | ||
| 1.85 | V | I = 6 mA | ||||||
| Input Diode Temperature | ΔV /ΔT | 1.7 | mV/°C | I = 6 mA | ||||
| Input Capacitance | C | 60 | pF | f = 1 MHz, V = 0V | b | |||
| a. Duration of output short | circuit time should | not exceed | 10 ms. | |||||
| b. Input capacitance is | measured between | pin 1 and pin | 3. | |||||
| ACPL-P480 and ACPL-W480 | Data Sheet | |||||||
| Input-Output Momentary | V | 3750b | V | RH < 50%, t = 1 min. | 5, 6 |
