产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.5
- 正向电流 IF
- 60
- 隔离电压 VISO
- 10 11
- 电源电压 VCC
- 5
- 传输速率
- 1
产品特点 Features
- High data rate, 1MHz typical (NRZ)
- Free from latch up and oscillation throughout voltage and temperature ranges.

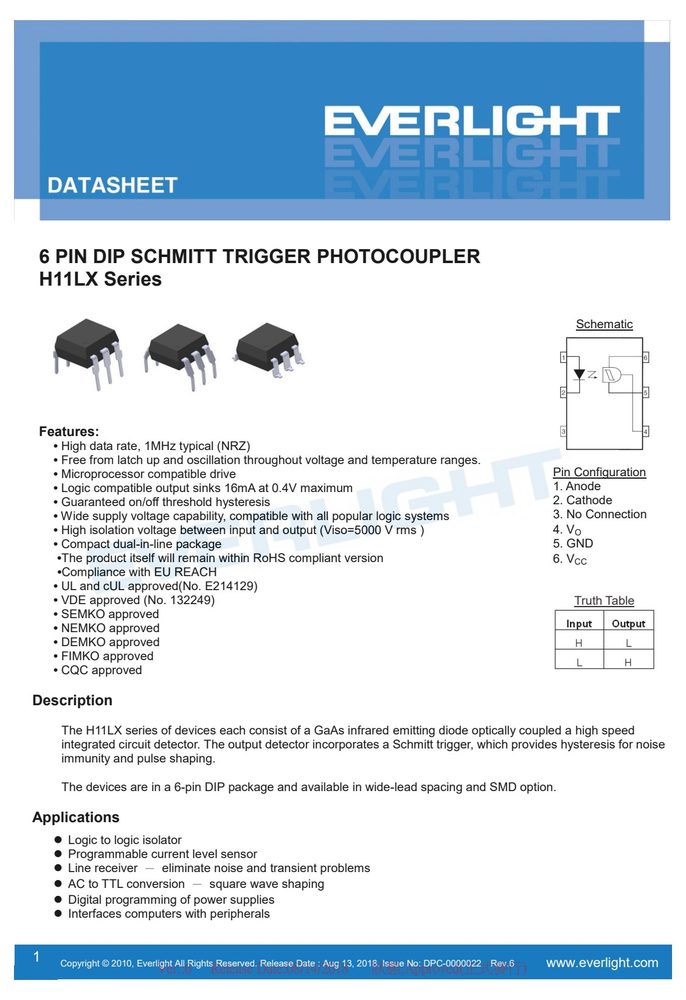

- DATASHEET
- 6 PIN DIP Schmitt Trigger PHOTOCOUPLER
- H11LX Series
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Forward current | I | 60 | mA |
| V | 6 | V | |
| P | 120 | mW | |
| V Allowed Range 45 | V o | 0 to 16 | V |
| V Allowed Range 65 | V CC | 3 to 16 | V |
| Output Current | I | 50 | mA |
| Power dissipation | P | 150 | mW |
| Total power dissipation | P | 250 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Operating temperature | T | -55~+100 | °C |
| Storage temperature | T | -55~+125 | °C |
| Soldering temperature | T | 260 | °C |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | Typ.* | 最大 | 单位 | 条件 |
|---|---|---|---|---|---|---|
| Forward Voltage | V | - | 1.15 | 1.5 | V | I = 10mA |
| Input capacitance | C | - | - | 100 | pF | V=0, f=1MHz |
| Operation Voltage Range | V | 3 | - | 15 | V | |
| Supply Current | I | - | 1.6 | 5 | mA | I =0mA, Vcc=5V |
| Output Current, High | I | - | - | 100 | µA I | =0mA, Vcc=Vo=15V |
| Isolation Resistance | R | 10 11 | - | - | Ω | V =500VDC |
| Supply Current | I | - | 1.6 | 5 | mA | I =10mA, Vcc=5V |
| Vcc=5V, I =I (max.), | ||||||
| Output Voltage .low | V | - | - | 0.4 | V | F Fon R =270Ω |
| H11L1 | - | - | 1.6 | |||
| Threshold H11L2 | I | - | - | 10 | mA | Vcc=5V, R =270Ω |
| H11L3 | - | - | 5 | |||
| Turn off Threshold Current | I | - | 1 | - | mA | Vcc=5V, R =270Ω |
| Hysteresis Ratio | I /I | 0.5 | - | 0.9 | Vcc=5V, R =270Ω | |
| Turn on Time | t | - | - | 4 | μS | |
| Fall Time | t | - | 0.1 | - | μS | Vcc=5V, |
| Turn off Time | t | - | - | 4 | μS | R =270Ω |
| Rise Time | t | - | 0.1 | - | μS | |
| Data Rate | - | 1 | - | MHz |
订货信息与供货形式
| 包装 | M | 型号 |
|---|---|---|
| H11LX | Series | |
| Package | Dimension (Dimensions in mm) | |
| Standard | DIP Type | |
| Option H11LX | M Series | Type |
| Option | S | Type |
| Option | S1 | Type |
应用领域 Applications
