Name: LITEON LTV-T350S-TA1
Brand: LITEON
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

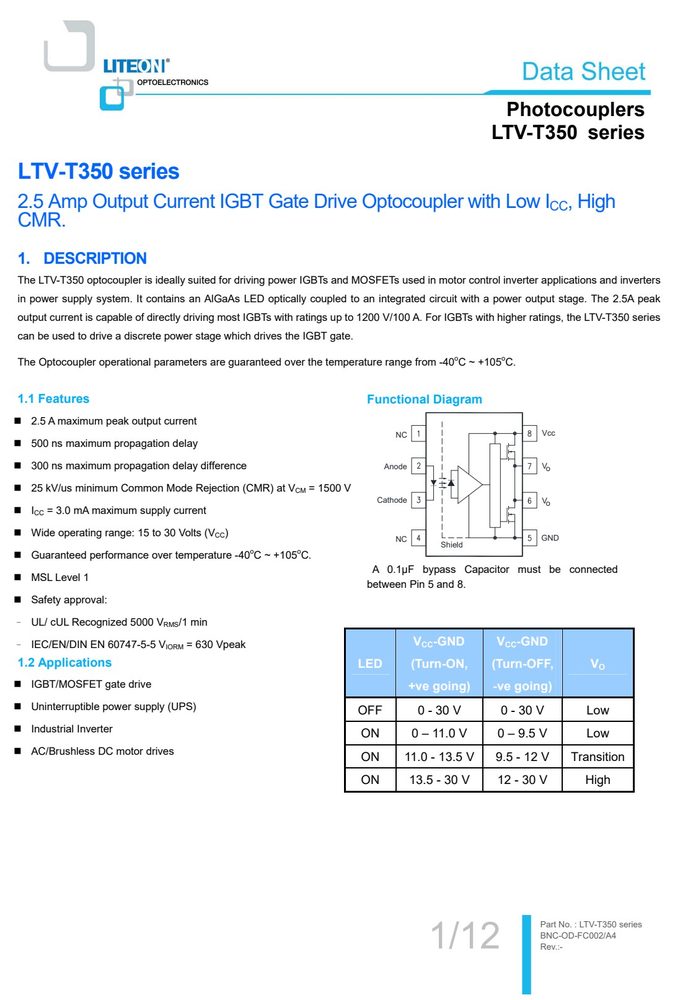

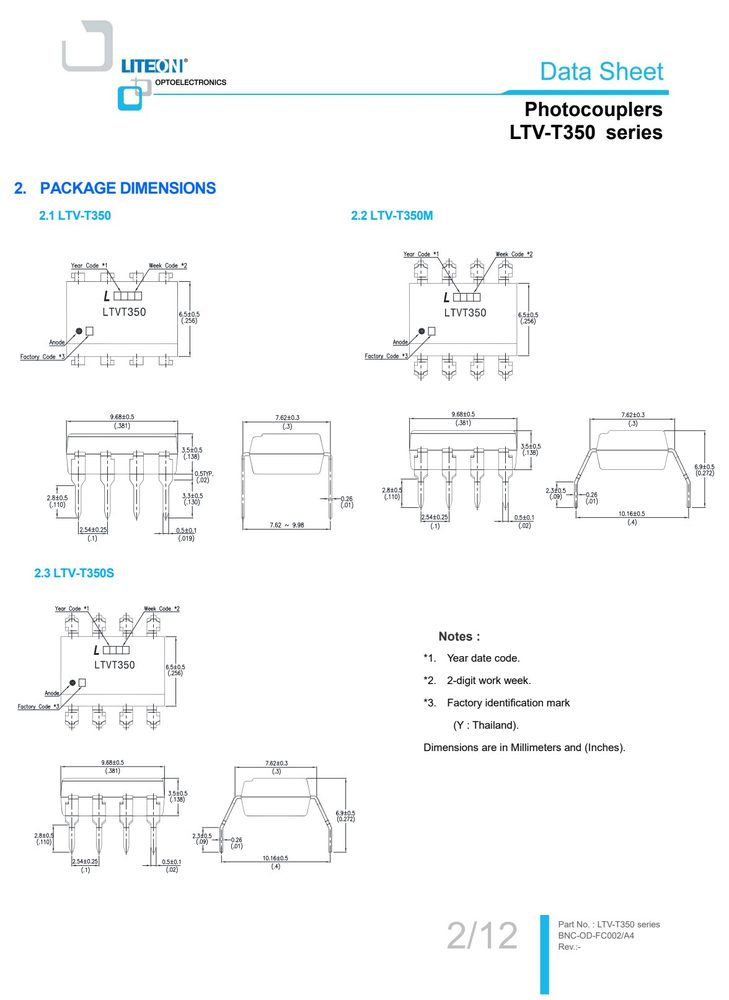

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

关键参数速览

正向电压 VF: 1.8
电源电压 VCC: 35
工作温度 TA: +105

产品特点 Features

Ω 2.5 A maximum peak output current
NC Vcc
Ω 500 ns maximum propagation delay
Ω 300 ns maximum propagation delay difference Anode Vo
Ω 25 kV/us minimum Common Mode Rejection (CMR) at V = 1500 V
Cathode Vo
Ω I = 3.0 mA maximum supply current
Ω Wide operating range: 15 to 30 Volts (V )
CC NC GND
Shield
Ω Guaranteed performance over temperature -40oC ~ +105oC.
A 0.1µF bypass Capacitor must be connected
Ω MSL Level 1 between Pin 5 and 8.
Photocouplers
LTV-T350 series
3. TAPING DIMENSIONS

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位	备注
Storage Temperature	T	-55	+125	oC	—
Operating Temperature	T	-40	+105	oC	—
Output IC Junction Temperature	T	—	125	oC	—
Total Output Supply Voltage	(V –V )	0	35	V	—
Average Forward Input Current	I	—	20	mA	—
Peak Transient Input Current	I	—	1.0	A	1
“High” Peak Output Current	I	—	2.5	A	2
“Low” Peak Output Current	I	—	2.5	A	2
Input Current (Rise/Fall Time)	t /t	—	500	ns	3
Output Voltage	V	—	35	V	—
Power Dissipation	P	—	45	mW	—
Output Power Dissipation	P	—	250	mW	—
Total Power Dissipation	P	—	295	mW	—
Lead Solder Temperature (10s)	T	—	260	oC	—

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	最小	典型	最大	单位	测试条件	备注
	V	5000	—	—	V		1, 2
Voltage						t = 1min, T = 25°C,
Input-Output Resistance	R	—	1012	—	Ω	V = 500V DC	1
Input-Output Capacitance	C	—	0.90	—	pF	f = 1MHz, T = 25°C	1
					7/12	Part No. : LTV	-T350 ser ies
						BNC-OD-FC002/A4

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	典型	最大	单位	测试条件	Figure	备注
Input Forward Voltage	V	1.2	1.37	1.8	V	I = 10mA
	∆V / ∆T		-1.237		mV/OC	I = 10mA
	I FLH		2	5	mA	V > 5V, I = 0A O O	21
	V FHL	0.8	1.26		V	V < 5V, I = 0A O O
Input Capacitance	C		33		pF	f = 1 MHz, V = 0 V
High Level Supply						Output Open,
	I		1.8	3.0	mA
Current						I = 7 to 16 mA
Low Level Supply						Output Open,
	I		2	3.0	mA
Current						V = -3 to +0.8 V
		1.0	2.0			V = (V – 3.5 V)		1
High level output current	I				A		19
		2.5				V - (V – 6 V)		2
		1.0	2.0			V = (V + 1.5 V)		1
Low level output current	I				A		20
		2.5				V = (V + 2.5 V)		2
		V	V			I = 10mA,
		CC -	CC –			F
High level output voltage	V				V		17
		2	1.1			I = -100mA
Low level output voltage	V OL			1	V	I = 0mA, I = 100mA F O	18
	V UVLO+	11.0	12.7	13.5	V	V > 5V, I = 10 mA O F
	V UVLO-	9.5	11.2	12.0	V	V < 5V, I = 10 mA O F
UVLO Hysteresis	UVLO		1.5		V
						LTV-T350		series
	t	50	220	500
	t PHL	50	250	500		R = 10Ω,
Low Output Level						g C = 10nF,	23
Pulse Width Distortion	PWD		30	200		f = 10 kHz,
Propagation delay difference					ns	Duty Cycle = 50%
between any two parts or	PDD	-200		200		I = 7 to 16 mA,		3
channels						V = 15 to 30V T = 25°C,
Common mode transient						I = 10 to 16 mA,
	\|CMH\|	25	35		kV/µs			1
immunity at high level output						V = 1500 V, V = 30 V T = 25°C,
Common mode transient						V = 0 V,
	\|CML\|	25	35		kV/µs			2
immunity at low level output						V = 1500 V, V = 30 V

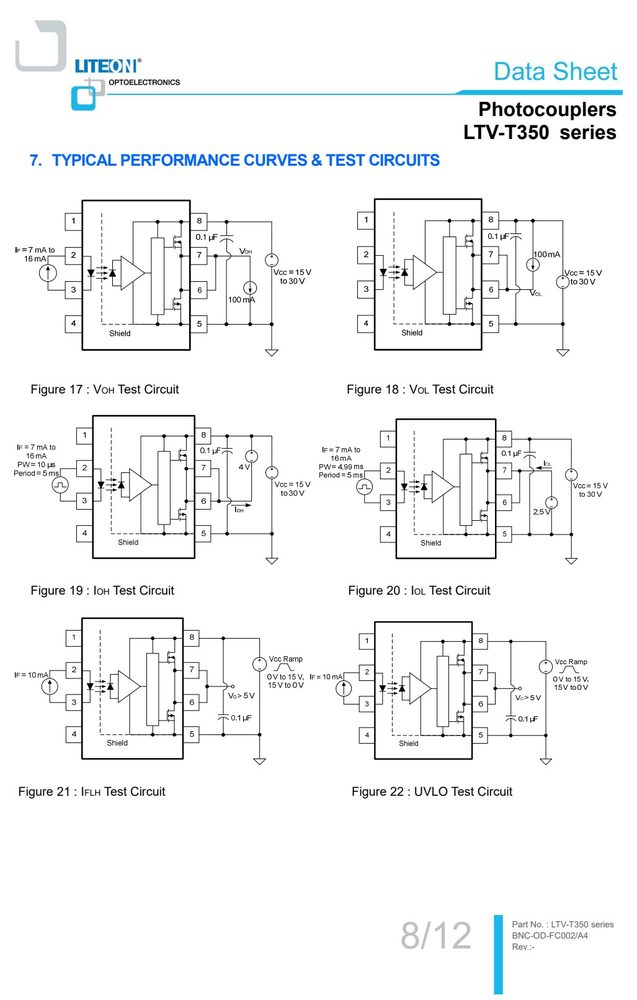

特性曲线（Typical Performance Curves）

应用领域 Applications

Ω Industrial InverterON 0 – 11.0 V 0 – 9.5 V LowΩ AC/Brushless DC motor drivesON 11.0 - 13.5 V 9.5 - 12 V TransitionON 13.5 - 30 V 12 - 30 V High1/12 Part No. : LTV -T350 ser iesBNC-OD-FC002/A4Rev.:-PhotocouplersLTV-T350 series3. TAPING DIMENSIONS3.1 LTV-T350S-TA
