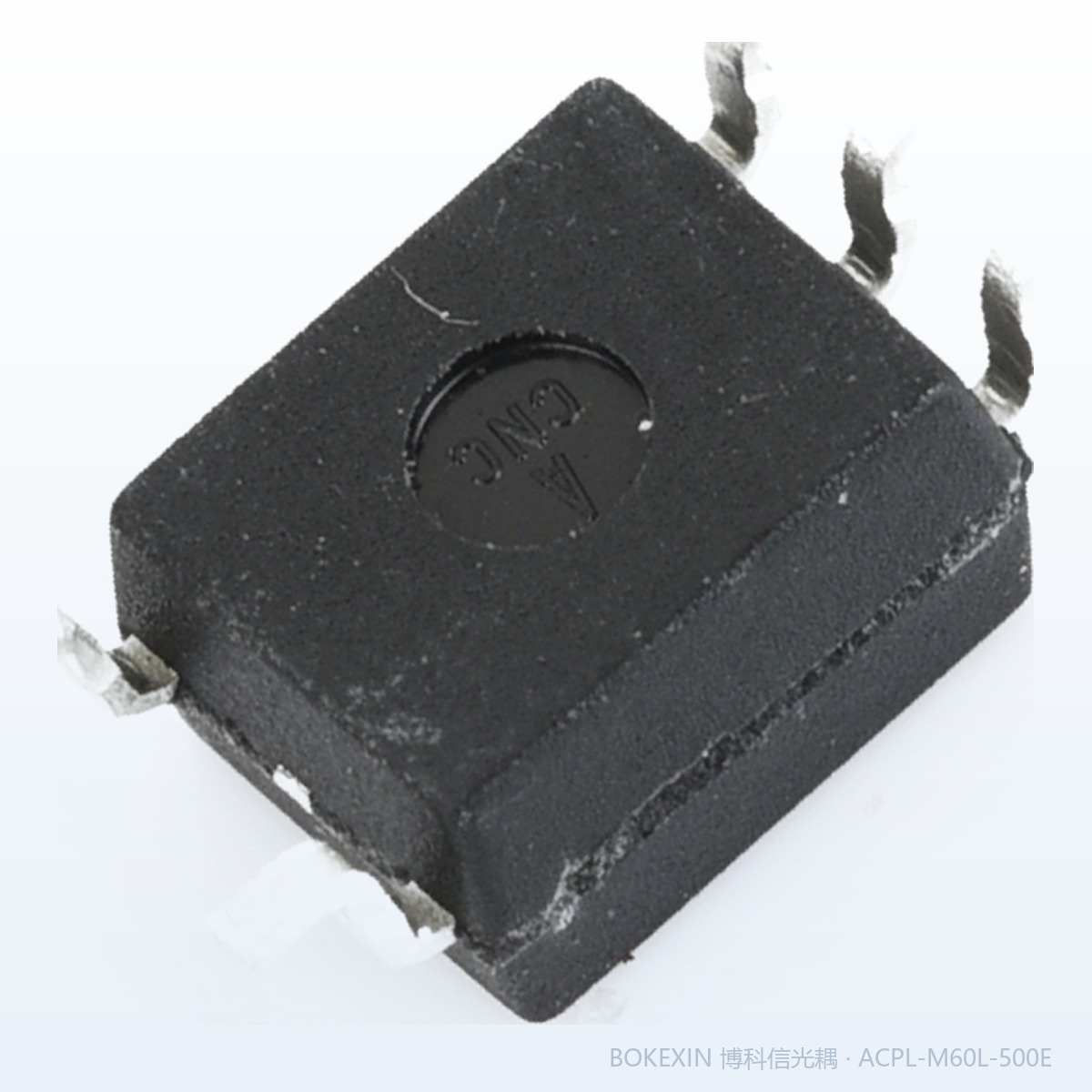

产品实拍图

本页为博科信现货实拍（器件丝印见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

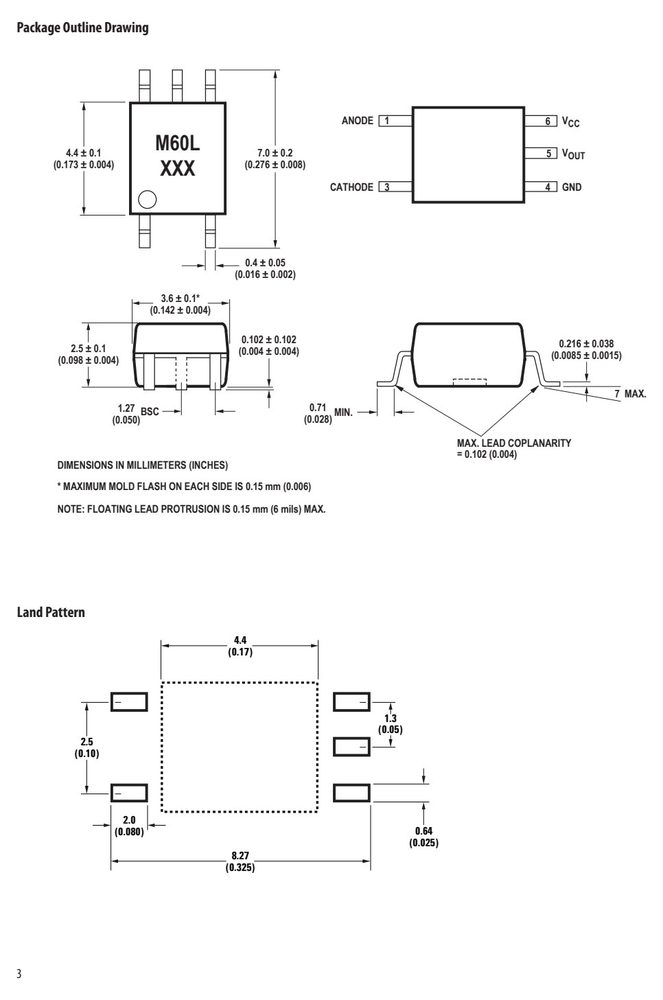

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

引脚定义与内部结构

引脚	符号	名称
4	GND
5	V
6	V
7	V
8	MINUTES

数据来源：原厂规格书引脚图

关键参数速览

反向电压 VR: 12, 13
隔离电压 VISO: 12, 13
电源电压 VCC: 7
工作温度 TA: 85

产品特点 Features

The ACPL-M60L is an optically coupled gate that com- bines a GaAsP light emitting diode and an integrated high gain photo detector. The output of the detector
IC is an open collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of 15 kV/µs at 3.3V op- eration.
This unique design provides maximum AC and DC circuit isolation while achieving LVTTL/LVCMOS compatibility.
The optocoupler AC and DC operational parameters are guaranteed from –40˚C to +85˚C, allowing trouble-free
Dual Voltage Operation (3.3V/5V)
Low power consumption
15 kV/µs minimum Common Mode Rejection (CMR) at V = 1000 V (3.3V operating voltage)
High speed: 15 MBd typical
LVTTL/LVCMOS compatible
Low input current capability: 5 mA
Guaranteed AC and DC performance over tempera- ture: –40˚C to +85˚C

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位	备注
Storage Temperature	T	–55	125	˚C
Operating Temperature†	T	–40	85	˚C
Average Forward Input Current	I		20	mA	1
Input Power Dissipation	P		40	mW
Supply Voltage (1 minute maximum)	V		7	V
Output Collector Current	I		50	mA
Output Collector Voltage	V		7	V
Output Collector Power Dissipation	P		85	mW

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	值	单位	条件
Minimum External Air Gap	L (I01)	≥ 5	mm	Measured from input terminals to output
(Clearance)				terminals
Minimum External Tracking	Path L (I02)	≥ 5	mm	Measured from input terminals to output
(Creepage)				terminals
(Clearance)				conductor
Tracking Resistance	CTI	175	V	DIN IEC 112/VDE 0303 Part 1
Isolation Group (per DIN	VDE 0109)	IIIa		Material Group DIN VDE 0109

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	典型	最大	单位	测试条件	图号	备注
High Level	I * OH		4.5	50	µA	V = 3.3 V, V = 3.3 CC O	V 1
Output Current						I = 250 µA
Input Threshold	I TH		3.0	5.0	mA	V = 3.3 V, V = 0.6 CC O	V,
Current						I (Sinking) = 13 mA
Low Level	V * OL		0.35	0.6	V	V = 3.3 V, I = 5 mA CC F	2
Output Voltage						I (Sinking) = 13 mA
High Level Supply	Current I CCH		4.7	7.0	mA	I = 0 mA, V = 3.3 F CC	V
Low Level Supply	Current I CCL		7.0	10.0	mA	I = 10 mA, V = 3.3 F CC	V
Input Forward	V F	1.4	1.5	1.75*	V	T = 25˚C, I = 10 mA A F	5
Input Diode	∆V /		–1.6		mV/˚C	I = 10 mA
Input-Output Insulation	V	3750			V	R ≤ 50%, t = 1 min.		12, 13
	ISO				RMS	H
Input Capacitance	C		60		pF	f = 1 MHz, V = 0 V
High Level	I OH		5.5	100	µA	V = 5.5 V, V = 5.5 CC O	V 1
Output Current						I = 250 µA
Input Threshold	I TH		2	5	mA	V = 5.5 V, I ≥13 CC O	mA,
Current						V = 0.6 V
Low Level	V OL		0.4	0.6	V	V = 5.5 V, I = 5 CC F	mA, 2
Output Voltage						I (Sinking) = 13	mA
High Level Supply	Current I CCH		4	7.5	mA	V = 5.5 V, I = 0 CC F	mA,
Low Level Supply	Current I CCL		6	10.5		V = 5.5 V, I = 10 CC F	mA,
Input Forward	V F	1.4	1.5	1.75	V	T = 25°C, I = 10 A F	mA 5
		1.3		1.85		I = 10 mA
Input Diode	∆V /∆T		-1.6		mV/°C	I = 10 mA
	F	A				F
Input-Output Insulation	V	3750			V	R ≤ 50%, t = 1 min.		12, 13
	ISO				RMS	H
Input Capacitance	C		60		pF	V = 0V, f = 1 MHz
Logic High	\|CM \|	ACPL-M60L	15,000	25,000	V/µs	\|V \| = 1000 V V = 3.3	V, I = 0 mA, 9	9, 11
	H					CM CC	F
Common						V =	2 V,
Mode						R = 350	Ω, T = 25˚C
			10,000	15,000		V = 5 V, V =	I = 0 mA, 9 2 V,	9, 11
						R = 350	Ω, T = 25˚C
Logic Low	\|CM \|	ACPL-M60L	15,000	25,000	V/µs	\|V \| = 1000 V V = 3.3	V, I = 7.5 mA, 9	10, 11
	L					CM CC	F
Common						V =	0.8 V,
Mode						R = 350	Ω, T = 25˚C
			10,000	15,000		V = 5 V, V =	I = 7.5 mA, 9 0.8 V,	10, 11
						R = 350	Ω, T = 25˚C

应用领域 Applications

ground or induced noise environments.Functional DiagramANODE 1 6 V CCCATHODE 3 4 GNDIsolated line receiverComputer-peripheral interfacesMicroprocessor system interfacesSwitching power supplyInstrument input/output isolationGround loop eliminationPulse transformer replacementField buses
