品牌说明
本型号为 AVAGO（安华高） 产品。安华高与博通（Broadcom）属于同一家公司：安华高 2005 年由安捷伦分拆上市，2016 年被博通收购，成为博通旗下半导体业务，业内常以 AVAGO／安华高／博通 混称。本页参数与规格书均取自该产品线原厂资料。
产品应用与封装尺寸

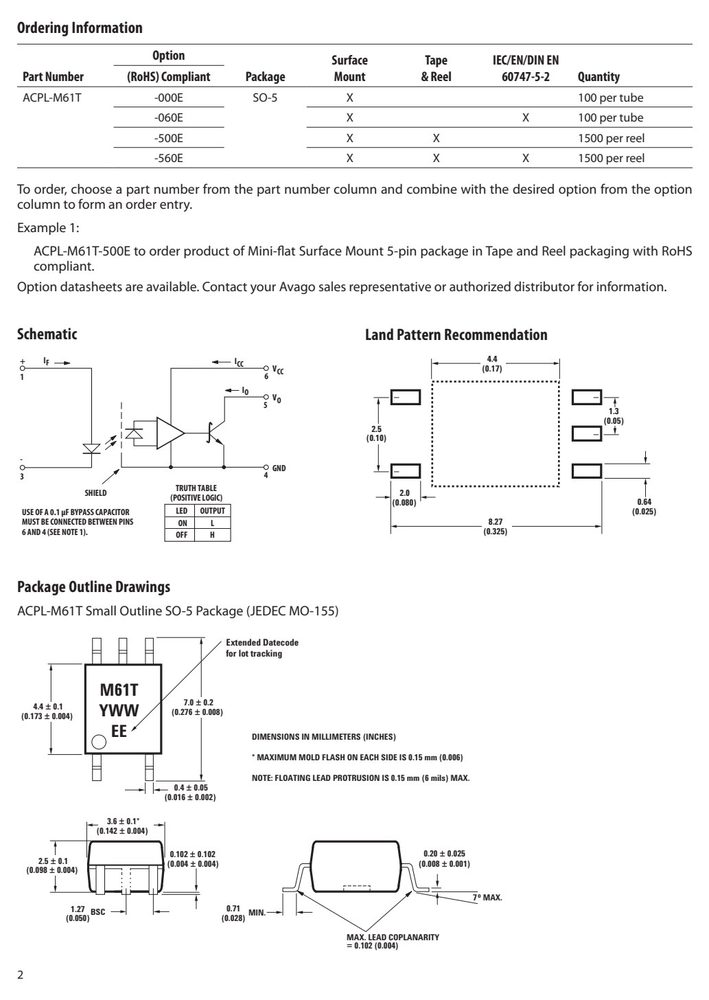

图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 4 | GND | |
| 5 | V | |
| 6 | V | |
| 7 | V |
数据来源：原厂规格书引脚图
关键参数速览

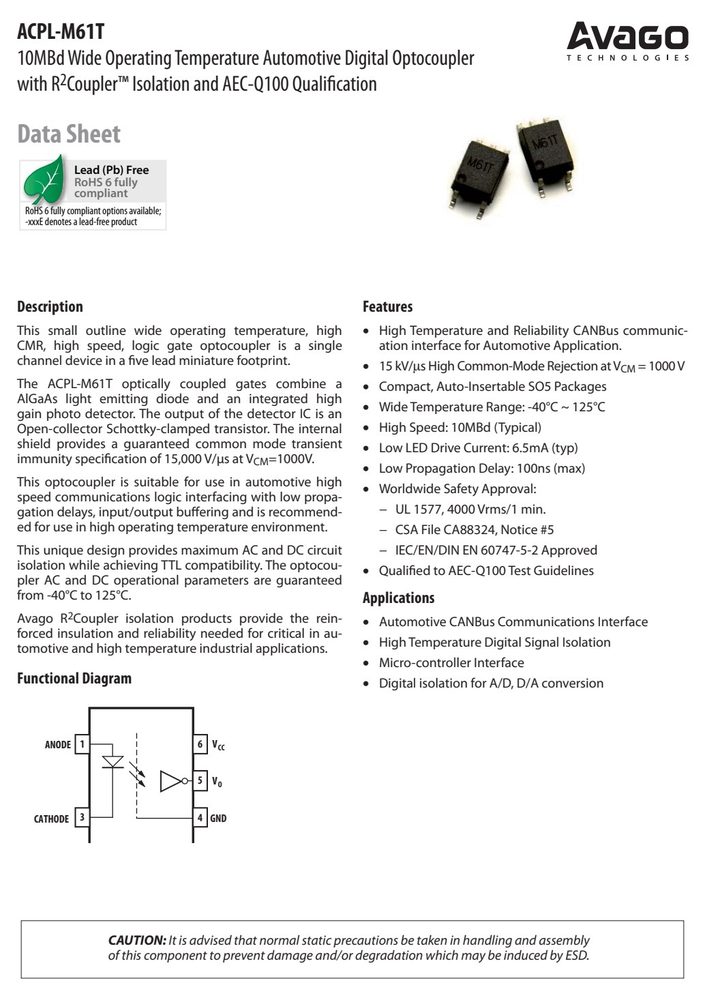

- 电源电压 VCC
- 13mA, 4
- 工作温度 TA
- 125°C,
产品特点 Features
- Recommended Pb-Free IR Profile
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C | |
| Operating Temperature | T | -40 | 125 | °C | |
| Lead Soldering Cycle | Temperature | 260 | °C | ||
| Time | 10 | sec | |||
| Input Current | Average I | 20 | mA | 12 | |
| (50% duty cycle, 1ms pulse width) | Peak I | 40 | mA | ||
| (<= 1us pulse width, 300ps) | Transient I | 100 | mA | ||
| Input Power Dissipation | P | 30 | mW | 13 | |
| Output Power Dissipation | P | 85 | mW | 14 | |
| Output Collector Current | I | 50 | mA | ||
| Supply Voltage (Pins 6-4) | V | -0.5 | 7 | V | |
| Output Voltage (Pins 5-4) | V | -0.5 | 7 | V |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| Safety-limiting | 值 | – | maximum | 值2 | allowed | in | the | event | of | a | failure. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input to Output | Test | Voltage, | Method b* | V 1063 V | |||||||
| V x 1.875=V | , | 100% | Production | Test | with t | =1 | sec, | Partial | discharge < 5 pC | ||
| Input to Output | Test | Voltage, | Method a* | V 907 V | |||||||
| V x 1.6=V | , Type | and | Sample | Test, t | =10 sec, | Partial | discharge | < 5 pC | |||
| Highest | Allowable | Overvoltage | (Transient | Overvoltage | t | = ini | 60 | sec) | V 6000 V IOTM peak | ||
| Case | Temperature | T 175 °C | |||||||||
| Input Current | I 230 mA | ||||||||||
| Output | Power | P 600 mW | |||||||||
| Insulation | Resistance | at T | , V = | 500 V | R >109 | ||||||
| S | IO | S | |||||||||
| Gap (Clearance) | through | air. | |||||||||
| Tracking | (Creepage) | path | along body. | ||||||||
| Tracking | Resistance | CTI | 175 | V | DIN | IEC | 112/VDE 0303 Part 1 | ||||
| Isolation Group | IIIa | Material | Group (DIN VDE 0109) |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | Typ.* | 最大 | 单位 | 条件 | 图号 | 备注 |
|---|---|---|---|---|---|---|---|---|
| Over recommended | operating Temperature | T = | -40°C to | 125°C, | unless | otherwise specified. | ||
| Input Threshold Current | I | 2 | 5 | mA | Vcc = 5.5V, Io ≥ Vo = 0.6V | 13mA, 4 | ||
| High Level Output | Current I | 5.5 | 100 | µA | Vcc = 5.5V, Vo = VF = 0.5V | 5.5V, 1 | ||
| Low Level Output | Voltage V | 0.4 | 0.6 | V | Vcc = 5.5V, I = | 6.5mA 2, 4, 5 | ||
| I (Sinking) = | 13mA | |||||||
| High Level Supply | Current I | 7.0 | 10.0 | mA | Vcc = 5.5V, I = | 0mA | ||
| Low Level Supply | Current I | 9.0 | 13.0 | mA | Vcc = 5.5V, I = | 10mA, | ||
| Input Forward Voltage | V | 1.45 | 1.5 | 1.75 | V | T =25°C, I = 10mA | ||
| 1.25 | 1.5 | 1.85 | V | I = 10mA | ||||
| Temperature Coefficient | V /T | -1.5 | mV/°C | I = 10mA | 3, 12 |
