品牌说明
本型号为 AVAGO（安华高） 产品。安华高与博通（Broadcom）属于同一家公司：安华高 2005 年由安捷伦分拆上市，2016 年被博通收购，成为博通旗下半导体业务，业内常以 AVAGO／安华高／博通 混称。本页参数与规格书均取自该产品线原厂资料。

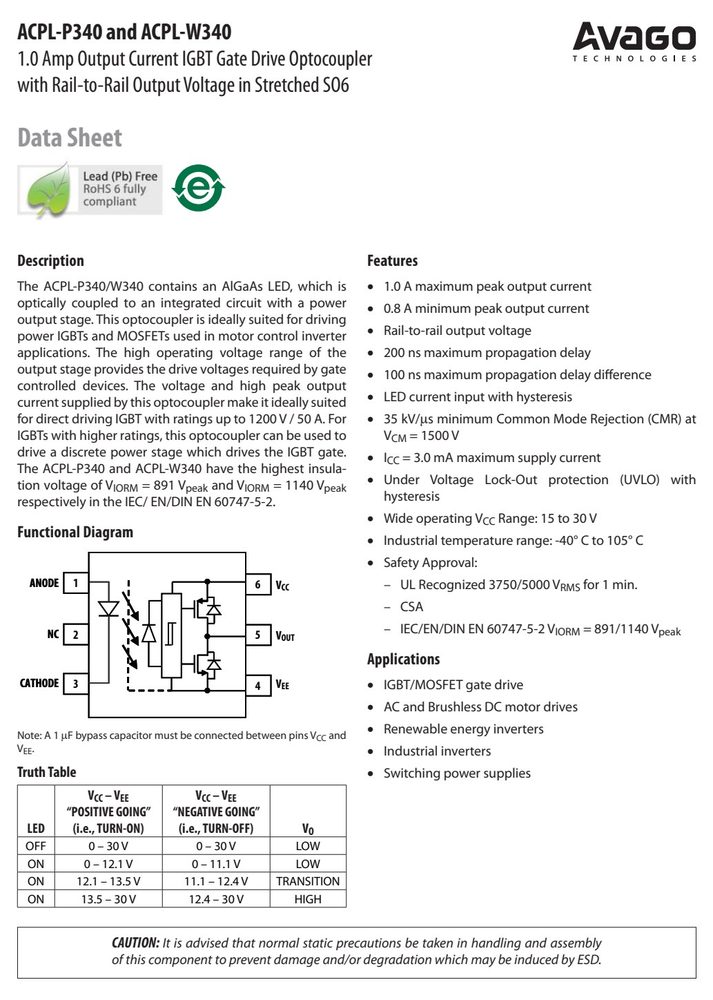

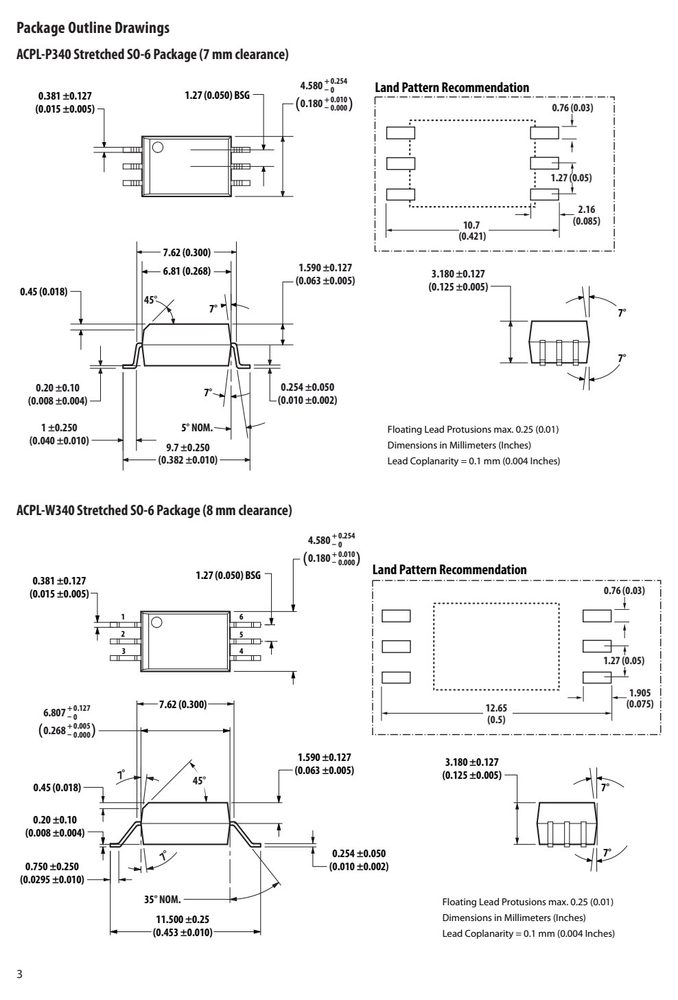

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 电源电压 VCC
- 35
- 工作温度 TA
- 105
产品特点 Features
- The ACPL-P340/W340 contains an AlGaAs LED, which is 1.0 A maximum peak output current optically coupled to an integrated circuit with a power
- 0.8 A minimum peak output current output stage. This optocoupler is ideally suited for driving
- 100 ns maximum propagation delay diff erence controlled devices. The voltage and high peak output
- LED current input with hysteresis current supplied by this optocoupler make it ideally suited for direct driving IGBT with ratings up to 1200 V / 50 A. For 35 kV/s minimum Common Mode Rejection (CMR) at
- IGBTs with higher ratings, this optocoupler can be used to V = 1500 V drive a discrete power stage which drives the IGBT gate.
- I CC = 3.0 mA maximum supply current
- The ACPL-P340 and ACPL-W340 have the highest insula-
- Under Voltage Lock-Out protection (UVLO) with tion voltage of V = 891 V and V = 1140 V
- IORM peak IORM peak hysteresis respectively in the IEC/ EN/DIN EN 60747-5-2.
- Wide operating V CC Range: 15 to 30 V
- Functional Diagram
- Industrial temperature range: -40° C to 105° C
- This thermal model assumes that an 6-pin single-channel cient gate voltage to the IGBT by forcing the ACPL-P340/ plastic package optocoupler is soldered into a 7.62 cm x
- W340 output low during power-up. IGBTs typically require
- 7.62 cm printed circuit board (PCB) per JEDEC standards.
- gate voltages of 15 V to achieve their rated V voltage.
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C | |
| Operating Temperature | T | -40 | 105 | °C | |
| Output IC Junction Temperature | T | 125 | °C | ||
| Average Input Current | I | 25 | mA | 1 | |
| Peak Transient Input Current | I | 1 | A | ||
| “High” Peak Output Current | I | 1.0 | A | 2 | |
| “Low” Peak Output Current | I | 1.0 | A | 2 | |
| Total Output Supply Voltage | (V - V ) | 0 | 35 | V | |
| Input Current (Rise/Fall Time) | t / t | 500 | ns | ||
| Output Voltage | V | -0.5 | V | V | |
| Output IC Power Dissipation | P | 700 | mW | 3 | |
| Total Power Dissipation | P | 745 | mW | 4 | |
| Lead Solder Temperature | 260° C for | 10 sec., 1.6 mm | below seating | plane |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 说明 | 符号 | 包装 | 060 | 包装2 | 0602 | 单位 |
|---|---|---|---|---|---|---|
| Input to Output Test Voltage, Method | b* V | 1671 | 2137 | V | ||
| Input to Output Test Voltage, Method | a* V | 1426 | 1824 | V | ||
| Highest Allowable Overvoltage | V | 6000 | 8000 | V |
订货信息与供货形式
| 型号 | 型号2 | RoHS | Compliant |
|---|---|---|---|
| Part | number | RoHS | Compliant |
| column Example | to form 1: | an order | entry. |
应用领域 Applications
