品牌说明
本型号为 AVAGO（安华高） 产品。安华高与博通（Broadcom）属于同一家公司：安华高 2005 年由安捷伦分拆上市，2016 年被博通收购，成为博通旗下半导体业务，业内常以 AVAGO／安华高／博通 混称。本页参数与规格书均取自该产品线原厂资料。

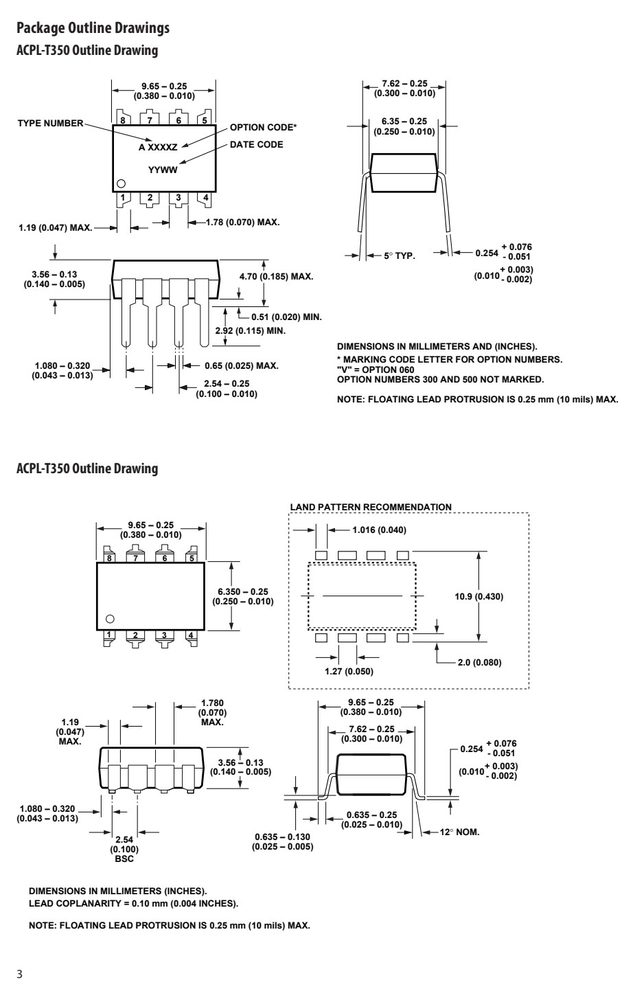

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 4 | V | |
| 5 | VEE | |
| 6 | VO | |
| 7 | VO | |
| 8 | VCC |
数据来源：原厂规格书引脚图
关键参数速览
- 电源电压 VCC
- 35
- 工作温度 TA
- 100

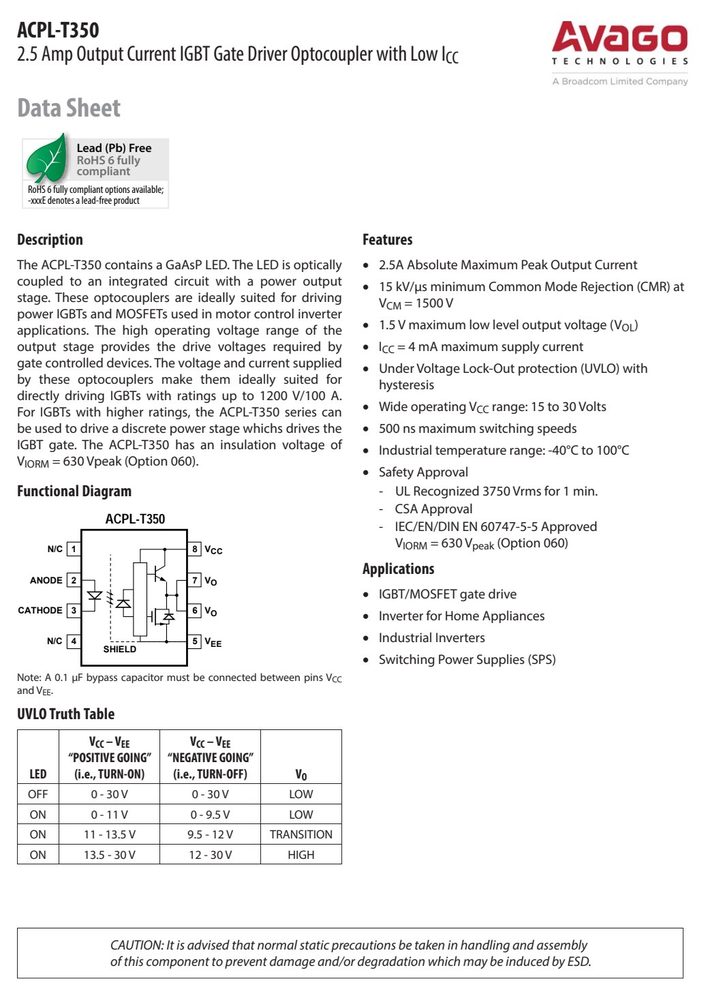

产品特点 Features
- The ACPL-T350 contains a GaAsP LED. The LED is optically 2.5A Absolute Maximum Peak Output Current coupled to an integrated circuit with a power output
- 15 kV/μs minimum Common Mode Rejection (CMR) at stage. These optocouplers are ideally suited for driving
- V = 1500 V power IGBTs and MOSFETs used in motor control inverter
- 1.5 V maximum low level output voltage (V )
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C | |
| Operating Temperature | T | -40 | 100 | °C | |
| Average Input Current | I | 25 | mA | 1 | |
| Peak Transient Input Current | I | 1.0 | A | ||
| “High” Peak Output Current | I | 2.5 | A | 2 | |
| “Low” Peak Output Current | I | 2.5 | A | 2 | |
| Supply Voltage | V – V | 0 | 35 | V | |
| Input Current (Rise/Fall | Time) t /t | 500 | ns | ||
| Output Voltage | V | 0 | V | V | |
| Output Power Dissipation | P | 250 | mW | 3 | |
| Total Power Dissipation | P | 295 | mW | 4 | |
| Lead Solder Temperature | 260°C for 10 | sec., 1.6 mm below | seating plane |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 说明 | 符号 | 包装 | 060 | 单位 |
|---|---|---|---|---|
| ACPL-T350 | ||||
| Installation classifi cation per DIN VDE 0110/39, | Table 1 | |||
| for rated mains voltage ≤ 150 V | I – IV | |||
| for rated mains voltage ≤ 300 V | I – IV | |||
| for rated mains voltage ≤ 450 V | I – III | |||
| Pollution Degree (DIN VDE 0110/39) | 2 | |||
| Input to Output Test Voltage, Method b* | V | 1181 | V | |
| V x 1.875=V , 100% Production Test with | t =1 sec, Partial discharge < 5 pC | |||
| Input to Output Test Voltage, Method a* | V | 1008 | V | |
| V x 1.6=V , Type and Sample Test, t =10 | sec, Partial discharge < 5 pC | |||
| Highest Allowable Overvoltage (Transient | Overvoltage t = 60 sec) V ini IOTM | 6000 | V peak | |
| Case Temperature | T | 175 | °C | |
| Input Current | I | 230 | mA | |
| Output Power | P | 600 | mW | |
| Insulation Resistance at T , V = 500 V | R | >109 | | |
| ACPL-T350 | Option 060 | |||
| detailed description of Method a and Method b partial | discharge test profi les. | |||
| Surface mount classifi cation is Class A in accordance | with CECC 00802. 600 | |||
| 0 | 25 50 | 75 100 | 125 150 175 | |
| T - CASE | TEMPERATURE | - C | ||
| Gap (Clearance) | through air. | |||
| Tracking (Creepage) | path along body. | |||
| Minimum Internal 0.08 | mm Through insulation distance conductor | to | conductor, | usually the |
| Plastic Gap | straight line distance thickness between | the | emitter | and detector. |
| Tracking Resistance CTI > 175 | V DIN IEC 112/VDE 0303 Part 1 | |||
| Isolation Group IIIa | Material Group (DIN VDE 0110, 1/89, | Table 1) |
特性曲线（Typical Performance Curves）
订货信息与供货形式
| 型号 | RoHS | Compliant | 封装 | Surface | Mount | Gull | Wing | Tape& | 包装 | 60747-5-5 | 数量 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ACPL-T350 | is UL | Recognized | with 3750 Vrms | for 1 | minute per | UL1577. | |||||
| number | RoHS | Compliant | Package | Surface | Mount | Gull | Wing | Tape& | Reel | 60747-5-5 | Quantity |
| ACPL-T350 | -000E | 300mil DIP-8 | 50 per tube | ||||||||
| RoHS | compliant option | will use | ‘-XXXE‘. | ||||||||
| Approval | under: | Approval | under | UL | 1577, | component | recognition | ||||
| Recommended | Pb-Free | IR Profi | le |
